Hot Cell

Product		Dispenser		Research

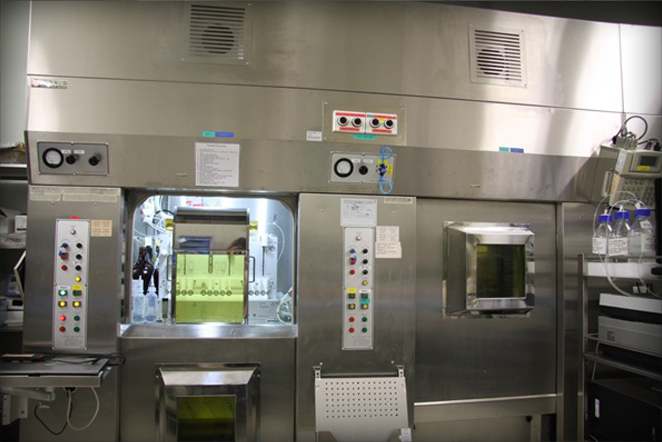

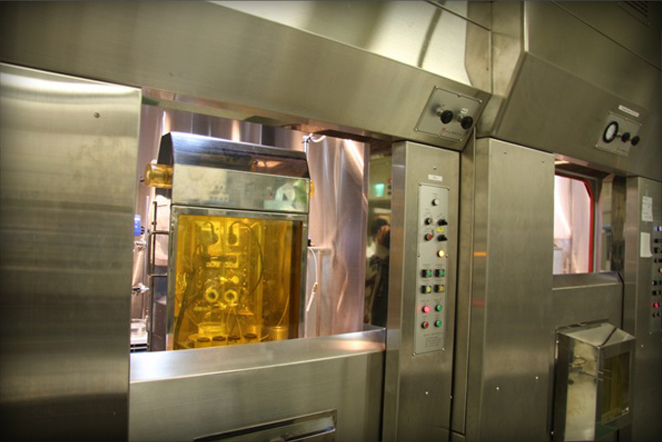

Research Hot Cell			The NUCLOCK N3 series aimed for research experimentation purpose is designed to house synthesis with the highest flexibility suitable for the new synthesis processes set up. The NUCLOCK N3 cells are equipped with manipulation, plexiglass panel with gloves, mobile shield with lead glass window. All above mentioned features allow using the cell in different configurations and in particular the manipulation with front lead door opened but in air tight conditions (with plexiglass panel closed) Ventilation System → Inlet HEPA filters → Outlet Charcoal filters
Specification
Shielding Lead thickness : 50, 75, 100mm on all sides Internal view CCTV or Lead glass window 350(W) x 350(L) on main door Ventilation Air quality : Class A, B, C Inlet filter : HEPA (EI≥99.97%) Outlet filter : Charcoal Dimension & Characteristics External dimensions : 1400(W) x 1300(D) x 2700(H)mm Inner dimensions : 850(W) x 850(D) x 800(H)mm Weight : about 9000kg Inlet Air : 4kg/cm2 Inlet N2:7kg/cm2 Vacuum : 400mmHg Utility Three phase 380V, 5kW / Single phase 220V, 2kW Main Door Up-down type - Automatic up-down mobile door activated by motor installed low part of cells Swing type - Manually operated Hinged Shielding door Option Mobile shield with lead glass window Dose - lift system Tong with booting Hand Glove Pre-chamber * All the specifications illustrated above shall be tailored so as to fit into requests made by end-users.
