Hot Cell
 |
|
Product Hot Cell
|
|
|

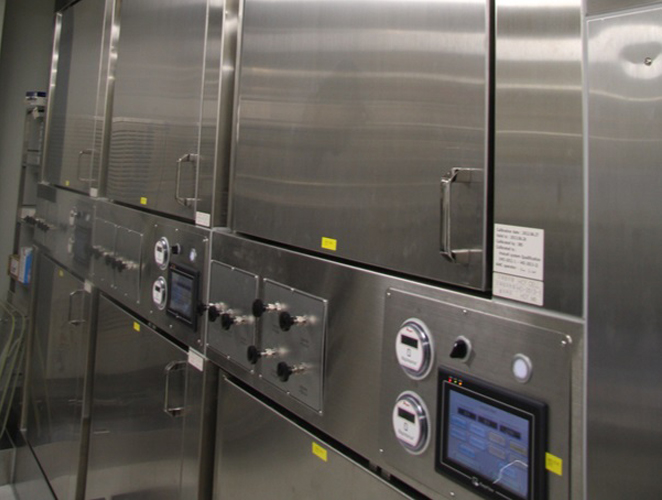

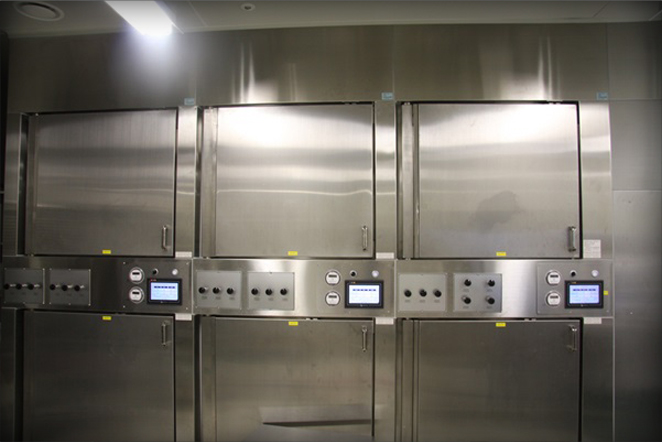

The NUCLOCK N1 series is a hot cell made for radiopharmaceuticals production and performed in the safest conditions with air-tightness assured by inflatable seals, ventilation, absolute filtering and internal surfaces quality. |
|
 |
|
| Specification |
| Shielding |
Lead thickness : 50, 75, 100mm on all sides |
| Internal view |
CCTV or Lead glass window 350(W) x 350(L) on main door |
| Ventilation |
Air quality : Class A, B, C
Inlet filter : HEPA (EI≥99.97%)
Outlet filter : Charcoal |
| Dimension & Characteristics |
Single cell
- External dimensions : 1400(W) x 1300(D) x 2700(H)mm
- Inner dimensions : 850(W) x 850(D) x 800(H)mm
- Weight : about 9000kg
- Inlet Air : 4kg/cm2
- Inlet N2:7kg/cm2
- Vacuum : 400mmHg
Dual cell
- External dimensions : 2240(W) x 1300(D) x 2700(H)mm
- Inner dimensions : { 850(W) x 850(D) x 800(H)mm } x 2EA
- Inner dimensions : or 1700(W) x 850(D) x 800(H)mm
- Weight : about 15000kg
- Inlet Air : 4kg/cm2
- Inlet N2:7kg/cm2
- Vacuum : 400mmHg |
| Utility |
Single cell
- Three phase 380V, 5kW / Single phase 220V, 2kW
Dual cell
- Three phase 380V, 8kW / Single phase 220V, 3kW |
| Main Door |
Up-down type
- Automatic up-down mobile door activated by motor installed low part of cells
Swing type
- Manually operated Hinged Shielding door |
| Option |
Mobile shield with lead glass window
Dose - lift system
Tong with booting
Hand Glove
Pre-chamber |
| * All the specifications illustrated above shall be tailored so as to fit into requests made by end-users. |
|
